Our Inclined Cleated Belt Conveyor with Hopper is designed for efficient loading, lifting, and continuous conveying of bulk materials, packaged products, and industrial components. Featuring a durable cleated belt, optional stainless steel, carbon steel, or aluminum profile frame, and multiple belt material choices, it provides reliable performance for food processing, packaging, recycling, agriculture, and automated production lines. Fully customizable to meet your specific application requirements.
Custom Inclined Cleated Belt Conveyor with Hopper for Material Handling and Automatic Feeding Systems
Original price was: $659.80.$499.80Current price is: $499.80.
Description
Custom Inclined Cleated Belt Conveyor with Hopper
The Inclined Cleated Belt Conveyor with Hopper is an ideal solution for automatic material feeding and inclined conveying. Designed with a feeding hopper and cleated conveyor belt, it efficiently transports loose materials, cartons, plastic parts, agricultural products, food ingredients, and industrial components from lower to higher elevations while preventing material rollback.
The conveyor features a robust frame available in stainless steel, carbon steel, or aluminum profile construction, allowing customers to select the most suitable material based on working environment, hygiene requirements, and budget. The modular design also supports easy integration into automated production lines and material handling systems.
To meet different industry requirements, the conveyor belt is available in PVC, PU, rubber, food-grade, anti-static, heat-resistant, oil-resistant, and other special belt materials, ensuring optimal performance for various applications.
Key Features
- Equipped with a feeding hopper for continuous automatic loading
- Cleated belt design prevents products from sliding during inclined conveying

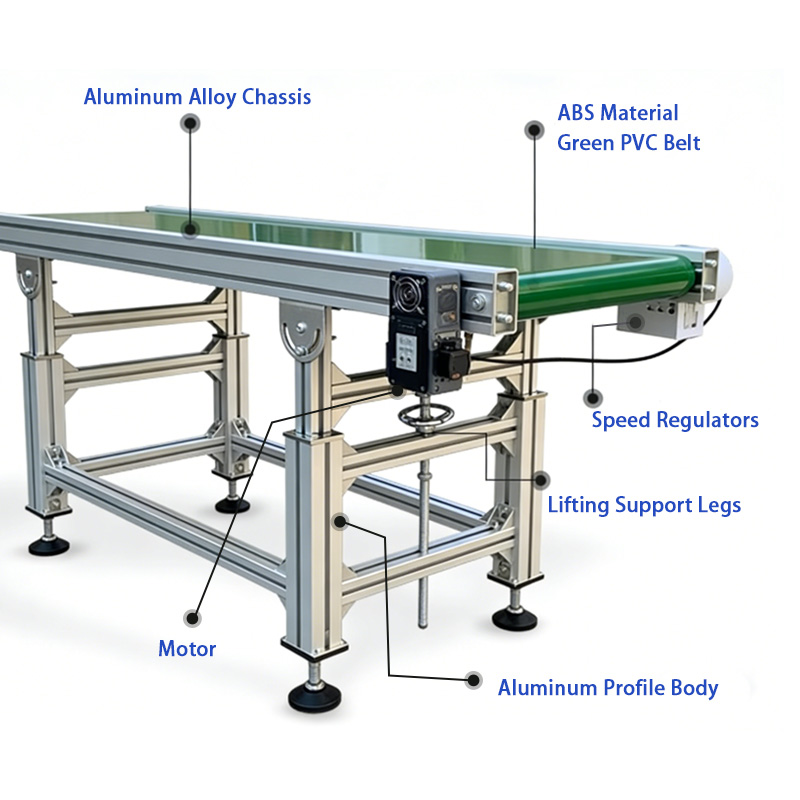

- Frame available in stainless steel, carbon steel, or aluminum profile
- Multiple conveyor belt materials available, including PVC, PU, rubber, food-grade, anti-static, heat-resistant, and oil-resistant belts
- Adjustable conveying speed with optional Variable Frequency Drive (VFD)
- Stable operation with low noise and low maintenance
- Corrosion-resistant structure suitable for demanding environments
- Easy to install, clean, and maintain
- Designed for continuous industrial operation
- Fully customizable dimensions, incline angles, and load capacities
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Inclined Cleated Belt Conveyor with Hopper |
| Conveyor Type | Inclined Belt Conveyor |
| Belt Material | PVC, PU, Rubber, Food Grade, Anti-static, Heat-resistant, Oil-resistant (Optional) |
| Cleat Type | Straight Cleats, Chevron Cleats, Customized |
| Frame Material | Stainless Steel, Carbon Steel, Aluminum Profile |
| Incline Angle | 20°–90° (Customizable) |
| Belt Width | 200–1200 mm |
| Conveyor Length | Customized |
| Lifting Height | Customized |
| Speed | Adjustable (0–30 m/min) |
| Motor | AC Gear Motor |
| Voltage | 110V / 220V / 380V / 415V / Customized |
| Control System | Variable Frequency Drive (Optional) |
| Load Capacity | Customized |
Applications
This conveyor is widely used in:
- Food Processing Industry
- Agricultural Products
- Grain and Seed Handling
- Fruit and Vegetable Processing
- Packaging Production Lines
- Plastic Injection Molding
- Hardware Manufacturing
- Recycling Industry
- Chemical Industry
- Pharmaceutical Production
- Warehouse Logistics
- Automated Production Lines

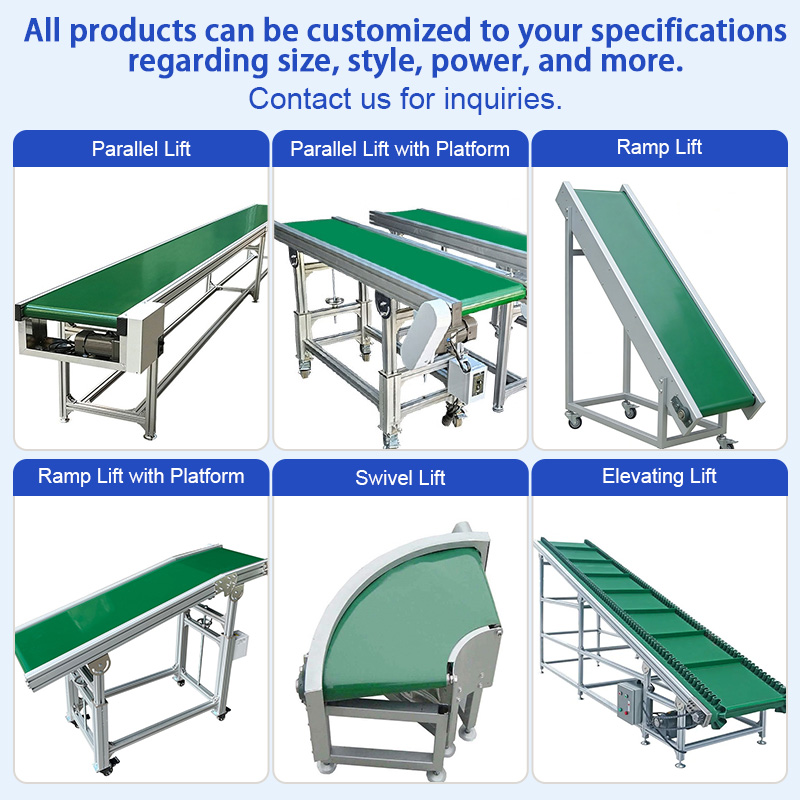

Customization Options
We provide complete OEM & ODM manufacturing services, including:
- Conveyor length and belt width
- Incline angle and lifting height
- Hopper size and feeding capacity
- Frame material selection (stainless steel, carbon steel, or aluminum profile)
- Belt material selection (PVC, PU, rubber, food-grade, anti-static, heat-resistant, oil-resistant)
- Cleat height and spacing
- Side guide rails
- Adjustable support legs
- Variable speed control
- PLC control system
- Sensor integration
- Emergency stop devices
- Special load capacity design
Product Advantages
- Professional Conveyor Manufacturer
- OEM & ODM Custom Manufacturing
- Multiple Frame Material Options
- Wide Selection of Conveyor Belt Materials
- Stable Performance and Long Service Life
- Energy-Efficient Drive System
- Competitive Factory Pricing
- Strict Quality Inspection
- Fast Delivery Worldwide
- One-Year Warranty with Lifetime Technical Support
Why Choose Zhengzhou Yiling?
Zhengzhou Yiling Electromechanical Equipment Co., Ltd. specializes in the design and manufacture of customized conveyor systems for industrial automation and material handling. We provide tailored conveyor solutions for customers in food processing, packaging, logistics, manufacturing, agriculture, and recycling industries.
With extensive engineering experience and advanced manufacturing capabilities, we deliver reliable, high-performance conveyor systems designed to improve productivity and reduce operating costs. Every conveyor can be customized to fit your production process, facility layout, and material handling requirements.
